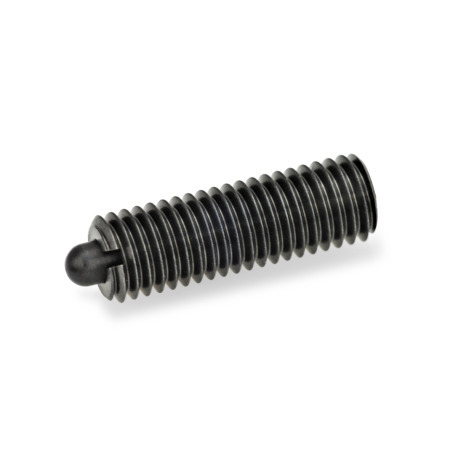

Spring Plungers GN 616.1

Product description

Information

Spring plungers GN 616.1 are used as locating devices, detent pins, pressure pins and ejectors. A typical example is push-on / push-off applications. Entry of liquids and dirt is prevented by the seal.

The slot on the nose pin side is provided for blind hole applications. A special installation tool GN 611.5 is available (see table).

Specification

Housing
Steel, blackened finish

Nose pin
Steel, hardened

Spring
Stainless steel AISI 303

Sealing ring
Rubber NBR (Perbunan^®)

Identification of Type SS
Housing with 2 longitudinal markings

RoHS

Accessory

Installation Tools GN 611.5 (Part no. See Table)

Build & Price

Part Number	d₁	d₂	Length l	w Compression	Spring load ≈ Standard (Type S) Initial	End	High (Type SS) Initial	End	Part number installation tool

616.1-M8-S	M 8	0.15	1.02	0.12	2.02 lbf (9 N)	5.40 lbf (24 N)	-	-	611.5-M10
616.1-M10-S	M 10	0.16	1.10	0.14	3.37 lbf (15 N)	6.74 lbf (30 N)	-	-	611.5-M10
616.1-M12-S	M 12	0.24	1.38	0.16	5.40 lbf (24 N)	11.24 lbf (50 N)	-	-	611.5-M12
616.1-M16-S	M 16	0.30	1.57	0.20	8.09 lbf (36 N)	13.04 lbf (58 N)	-	-	611.5-M16

Part Number	d₁	d₂	Length l	w Compression	Spring load ≈ Standard (Type S) Initial	End	High (Type SS) Initial	End	Part number installation tool

616.1-M8-SS	M 8	0.15	1.02	0.12	2.02 lbf (9 N) 3.37 lbf (15 N) 5.40 lbf (24 N) 8.09 lbf (36 N)	-	3.82 lbf (17 N)	8.77 lbf (39 N)	611.5-M10
616.1-M10-SS	M 10	0.16	1.10	0.14	2.02 lbf (9 N) 3.37 lbf (15 N) 5.40 lbf (24 N) 8.09 lbf (36 N)	-	4.95 lbf (22 N)	9.67 lbf (43 N)	611.5-M10
616.1-M12-SS	M 12	0.24	1.38	0.16	2.02 lbf (9 N) 3.37 lbf (15 N) 5.40 lbf (24 N) 8.09 lbf (36 N)	-	8.99 lbf (40 N)	17.98 lbf (80 N)	611.5-M12
616.1-M16-SS	M 16	0.30	1.57	0.20	2.02 lbf (9 N) 3.37 lbf (15 N) 5.40 lbf (24 N) 8.09 lbf (36 N)	-	9.89 lbf (44 N)	25.40 lbf (113 N)	611.5-M16

d₁	d₂	Length l	w Compression	Spring load ≈ Standard (Type S) Initial	End	High (Type SS) Initial	End	Part number installation tool

M 8	0.15	1.02	0.12	2.02 lbf (9 N)	5.40 lbf (24 N)	3.82 lbf (17 N)	8.77 lbf (39 N)	611.5-M10
M 10	0.16	1.10	0.14	3.37 lbf (15 N)	6.74 lbf (30 N)	4.95 lbf (22 N)	9.67 lbf (43 N)	611.5-M10
M 12	0.24	1.38	0.16	5.40 lbf (24 N)	11.24 lbf (50 N)	8.99 lbf (40 N)	17.98 lbf (80 N)	611.5-M12
M 16	0.30	1.57	0.20	8.09 lbf (36 N)	13.04 lbf (58 N)	9.89 lbf (44 N)	25.40 lbf (113 N)	611.5-M16

3D Product Configurator

Thread d₁

M 8

M 10

M 12

M 16

Type

S - Steel, standard spring load

SS - Steel, high spring load

Selected Part

Part Number

Total Mexican Pesos (net)

Mex$249.00

In Stock: 47

In Stock

Quantity

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$341.13
100	249	Mex$312.70
250	499	Mex$284.28
≥ 500		Mex$255.85

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.015 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
