Wheels EN 22886

d₁ Wheel Ø	b₁	b₂	d₂	Recommended ergonomic max. load	Max. static load capacity	Max.  dynamic load capacity

3.94	1.57	1.57	0.59	674 lbf (3000 N)	899 lbf (4000 N)	674 lbf (3000 N)
4.92	1.57	1.97	0.79	787 lbf (3500 N)	1124 lbf (5000 N)	787 lbf (3500 N)
6.30	1.97	2.28	0.79	1236 lbf (5500 N)	1798 lbf (8000 N)	1236 lbf (5500 N)
7.87	1.97	2.28	0.79	1574 lbf (7000 N)	2248 lbf (10000 N)	1574 lbf (7000 N)

Suitable for Floor Type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

EN 22870	x	-	-	-	-	-	x
EN 22872	x	-	x	-	-	-	-
EN 22873	x	x	x	x	x	x	x
EN 22874	x	x	x	x	x	x	x
EN 22875	x	x	x	x	x	x	x
EN 22880	x	-	x	-	-	-	x
EN 22882	x	-	x	-	-	-	-
EN 22884	x	-	x	-	-	-	x
EN 22885	x	-	x	-	-	-	-
EN 22886	x	x	x	x	x	x	x
EN 22887	x	-	x	-	-	-	-
EN 22892	x	-	x	-	-	-	-
EN 22894	x	-	x	-	-	-	-
EN 22868	x	-	x	-	-	-	-

Selected Part

Part Number

Total Mexican Pesos (net)

Mex$1,452.60

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	24	Mex$1,452.60
25	49	Mex$1,331.55
50	99	Mex$1,210.50
≥ 100		Mex$1,089.45

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.859 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: +52(81)2721-4021

All Prices are in Mexican Pesos. Taxes Not Included.

CAD data

Other Data Formats

Save as Favorites

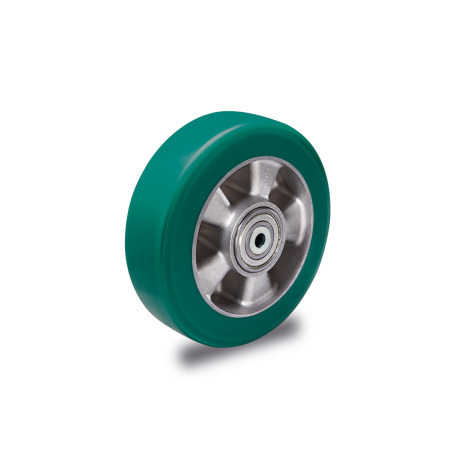

EN 22886 Wheels Polyurethane Wheel Tread, Aluminum Wheel Core


Product description

Information

Specification

Technical drawing

Part Options / Table

Bearing type

Type

Metric

Build & Price

Suitable for Floor Type

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

Part Number	d₁ Wheel Ø	b₁	b₂	d₂	Recommended ergonomic max. load	Max. static load capacity	Max.  dynamic load capacity

22886-100-K-A	3.94	1.57	1.57	0.59	674 lbf (3000 N)	899 lbf (4000 N)	674 lbf (3000 N)
22886-125-K-A	4.92	1.57	1.97	0.79	787 lbf (3500 N)	1124 lbf (5000 N)	787 lbf (3500 N)
22886-160-K-A	6.30	1.97	2.28	0.79	1236 lbf (5500 N)	1798 lbf (8000 N)	1236 lbf (5500 N)
22886-200-K-A	7.87	1.97	2.28	0.79	1574 lbf (7000 N)	2248 lbf (10000 N)	1574 lbf (7000 N)
