ELESA original design

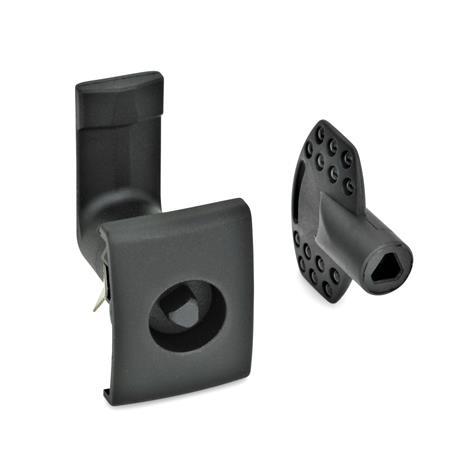

Cam latches EN 115.5 lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.
Various latch arms are available to cover a latch arm distance A from 18 to 30 mm.
Plastic socket key for triangular spindle or socket key with double bit are included.
Cam latch housing
Plastic
Technopolymer (Polyamide PA)
Glass fiber reinforced
Round stop (Identification no. 1)
Rectangular stop (Identification no. 2)
Stop, round with handle (Identification no. 3)
Latch arm / assembly hardware
Stainless steel
Protection class IP 65
RoHS
| DK | With triangular spindle |
| VDE | With double bit |
| 1 | Latch housing with round stop |
| 2 | Latch housing with rectangular stop |
| 3 | Latch housing with stop, round with handle |
| Latch arm distance A | ||||
|---|---|---|---|---|
| 0.71 | 0.79 | 0.87 | 0.98 | 1.18 |
|
Some latches of version SW are entirely made of plastic that is classified as self-extinguishing as per UL 94 V-0. The classification under UL 94 V-0 (Underwriters Laboratories) describes the fire behaviour of plastic. In the test, a plastic test specimen with a certain shape and with certain dimensions is placed vertically and set on fire. For classification V-0, the flame must go out within 10 seconds without generating burning drops. |
|
This is a simple tool allowing the cam latch to be removed. |
||||||||||
|
For installation, set a hole in the door, cover or hatch as shown in the outline drawing. When assembled, the latch can be inserted through the hole from the front, up to the stop. At the same time, the metal snap-in tabs snap into the surrounding structure on the back side and hold the latch in the hole. The required installation bore in the door leaf, is usually generated by punching or laser machining in series production. The installation bore diameter can also be created by drilling or milling as shown in the outline drawings. For small series and steel sheets below 2 mm thickness, the Sheet Metal Punches GN 123 are alternatively the tool of choice. |
||||||||||
