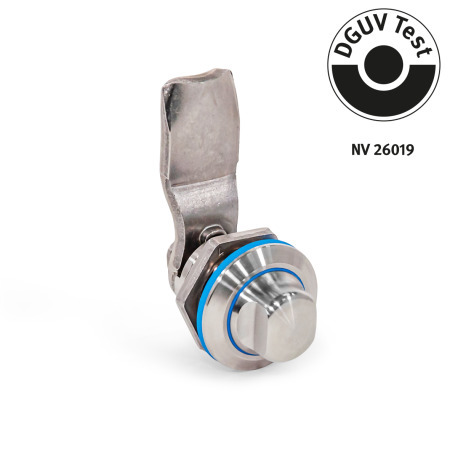

Cam Latches GN 1150


GN 1150 Stainless Steel AISI 316L Cam Latches, Operating Side in Hygienic Design

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Product Family Hygienic Design

Standard Parts of the “Hygienic Design” product family are labeled with the HD icon. They combine high surface quality, freedom from dead spaces, non-scooped outer surfaces, and sealed bolting areas. A sealing concept based on FEM calculations ensures reliable contact pressure after installation.

suitable for use in hygienically sensitive areas
quick and easy cleaning
no dead spaces due to functional seals
certified according to EHEDG guidelines

Show all Hygienic Design products

FDA compliant

Standard Sheet GN 1150 Print This Page Technical and Assembly Instructions Hygienic Design Information Hygienic Design - Leaflet IP Protection Classes Plastic Characteristics Stainless Steel Characteristics

Product description

Information

GN 1150 cam latches are intended for use in hygienic areas and meet hygiene requirements on the operating side. The locking mechanism is protected by two seals. At the same time, the high surface quality (Ra < 0.8 µm) and dead-space-free mounting prevent dirt from adhering and facilitate cleaning.

The latches create a secure closure by rotating a maximum of 90°, which positions the latch arm in the locked position behind the frame. Slanted surfaces on the latch arm ensure smooth positioning. Latch arms are available with different bend angles to cover a latch arm distance A from 6 to 28 mm.

The mounting holes in the housing must be at a right angle, free of burrs and without a chamfer. This ensures that the sealing rings will function properly. GN 1150 latches are supplied with loosely enclosed latch arm.

Specification

Cam latch housing
Stainless steel AISI 316L

Latch arm
Stainless steel

AISI 304 for d₁ = 22
AISI 316L for d₁ = 30

Sealing ring / O-ring
EPDME

Blue, FDA compliant
Temperature resistant -40 °F to 248 °F
(-40 °C to 120 °C)
Hardness 85 ±5 shore A (Sealing ring)
Hardness 70 ±5 shore A (O-ring)

Other parts
Stainless steel AISI 316L

All moving parts lubricated with a special, FDA compliant grease

Protection class IP 66

RoHS

Build & Price

Part Number	d₁	Latch arm distance A	b₁	b₂	d₂	k min.	max.	l₁ +0.04 / -0.04	l₂	l₃ ≈	s	A/F

1150-22-SW-7.5-FH-E	0.87	0.30	0.47	0.28	0.35	0.06	0.20	0.94 +0.04 / -0.04	0.50	0.83	0.31	0.35
1150-22-SW-13.5-FH-E	0.87	0.53	0.47	0.28	0.35	0.06	0.20	0.94 +0.04 / -0.04	0.50	0.83	0.31	0.35
1150-22-SW-19.5-FH-E	0.87	0.77	0.47	0.28	0.35	0.06	0.20	0.94 +0.04 / -0.04	0.50	0.83	0.31	0.35
1150-30-SW-6-FH-E	1.18	0.24	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51
1150-30-SW-10-FH-E	1.18	0.39	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51
1150-30-SW-14-FH-E	1.18	0.55	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51
1150-30-SW-18-FH-E	1.18	0.71	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51
1150-30-SW-20-FH-E	1.18	0.79	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51
1150-30-SW-22-FH-E	1.18	0.87	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51
1150-30-SW-24-FH-E	1.18	0.94	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51
1150-30-SW-26-FH-E	1.18	1.02	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51
1150-30-SW-28-FH-E	1.18	1.10	0.75	0.39	0.51	0.06	0.24	1.77 +0.04 / -0.04	0.60	1.14	0.39	0.51

3D Product Configurator

Technical and Assembly Instructions


For installation, set a bore diameter in the door, cover or hatch as shown in the outline drawing below. The lock housing is inserted into the installation bore from the front and secured from the back with the mounting nut. Then the latch bar is secured with the hex head screw. In series production, the required installation bore in the door leaf is usually created by punching or laser cutting. The installation bore diameter can also be created by drilling or milling as shown in the outline drawings. The sheet metal punch GN 123 is also available for small series production and sheet steel with a thickness < 2 mm.
Construction note for d₁ = 22						Construction note for d₁ = 30
Bore distance

Installation bore for punching or lasering

Installation bore for drilling or milling

Selected Part

Part Number

Total Mexican Pesos (net)

Mex$1,113.00

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$1,524.81
50	99	Mex$1,397.74
100	249	Mex$1,270.68
≥ 250		Mex$1,143.61

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.096 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
