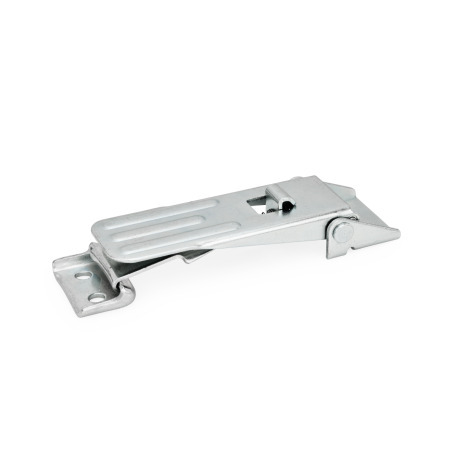

Toggle Latches GN 821


Type: S - With safety catch
Material: ST - Steel
Identification No.: 1 - Long type

GN 821 Steel / Stainless Steel, Zinc Plated Toggle Latches Type: A - Without safety catch
Material: NI - Stainless steel
Identification No.: 1 - Long type

GN 821 Steel / Stainless Steel, Zinc Plated Toggle Latches Type: A - Without safety catch
Material: ST - Steel
Identification No.: 1 - Long type

GN 821 Steel / Stainless Steel, Zinc Plated Toggle Latches Type: A - Without safety catch
Material: ST - Steel
Identification No.: 2 - Short type

GN 821 Steel / Stainless Steel, Zinc Plated Toggle Latches Type: S - With safety catch
Material: ST - Steel
Identification No.: 2 - Short type

GN 821 Steel / Stainless Steel, Zinc Plated Toggle Latches Type: SV - For safety with padlock
Material: NI - Stainless steel
Identification No.: 2 - Short type

GN 821 Steel / Stainless Steel, Zinc Plated Toggle Latches Type: SV - For safety with padlock
Material: ST - Steel
Identification No.: 2 - Short type

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Product description

Information

Toggle latches GN 821 are used for the secure holding of flaps, container lids, etc. They lock securely over the center and are thus vibration proof.
A versatile, low profile design.

The stroke w₁ of the clamping hook can pull the parts to be clamped together by up to 6 mm. The range w₂ can be adjusted on the M6 threaded spindle of the clamping hook.

The types S, SV and SS prevent unwanted release of the toggle latch.

In the standard version the toggle latches of type SS have the same lock and / or the same key.

The load specified in the table is simply a guideline value for the nominal static pulling force the latch can withstand. The holding capacity can be adversely affected by the conditions under which the latch is used, such as vibration or shock loads.

The catch bracket is included.

Specification

Toggle latch
SteelST, zinc plated, blue passivated finish

Stainless steelNI
(Only Type A, S and SV)

Parts in sheet metal
AISI 304
Clamping hook / pivot pin
AISI 303

RoHS

Build & Price

Part Number	Size	F_H Holding capacity	b₁	b₂	b₃	b₄	h₁	h₂	h₃	h₄	l₁ min. Identification no. 1 Type A Type SV	Type S Type SS	l₂ min. Identification no. 1 Type A Type SV	Type S Type SS

400ENH0/A	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENGY/A	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENH0/S	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENGY/S	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENGY/SV	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENH0/SS	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENGY/SS	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENH1/A	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENGZ/A	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENGZ/S	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENH1/SV	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86
400ENGZ/SV	400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86

Size	l₃	l₄ min. Identification no. 2 Type A Type SV	Type S Type SS	l₅ min. Identification no. Type A Type SV	Type S Type SS	d	m₁	m₂	m₃	r	w₁ ≈ Stroke	w₂≈ Adjustable range Type A Type SV	Type S Type SS

400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31
400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31

Size	F_H Holding capacity	b₁	b₂	b₃	b₄	h₁	h₂	h₃	h₄	l₁ min. Identification no. 1 Type A Type SV	Type S Type SS	l₂ min. Identification no. 1 Type A Type SV	Type S Type SS

400	899 lbf (4000 N)	1.83	1.77	1.50	1.06	0.87	0.47	1.12	1.28	5.67	5.79	4.74	4.86

Size	l₃	l₄ min. Identification no. 2 Type A Type SV	Type S Type SS	l₅ min. Identification no. Type A Type SV	Type S Type SS	d	m₁	m₂	m₃	r	w₁ ≈ Stroke	w₂≈ Adjustable range Type A Type SV	Type S Type SS

400	1.26	3.17	3.29	4.65	4.76	0.25	0.79	0.47	0.45	4.23	0.26	0.59	0.31

3D Product Configurator

Size

400

Type

A - Without safety catch

S - With safety catch

SS - With key lock

SV - For safety with padlock

Material

NI - Stainless steel

ST - Steel

Identification No.

1 - Long type

2 - Short type

Selected Part

Part Number

Total Mexican Pesos (net)

Mex$931.80

In Stock: 6

In Stock

Quantity

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$1,276.57
50	99	Mex$1,170.19
100	249	Mex$1,063.81
≥ 250		Mex$957.42

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.485 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
