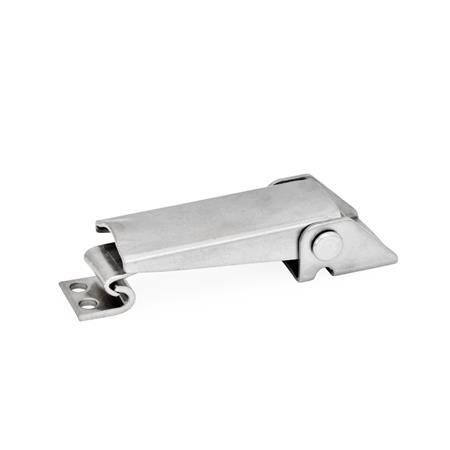

Toggle Latches GN 831


Material: NI - Stainless steel
Type: A - Without safety catch
Identification No.: 1 - Long type

GN 831 Steel / Stainless Steel Toggle Latches Material: NI - Stainless steel
Type: SV - For safety with padlock
Identification No.: 1 - Long type

GN 831 Steel / Stainless Steel Toggle Latches Material: ST - Steel
Type: S - With safety catch
Identification No.: 1 - Long type

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Product description

Information

Toggle latches GN 831 are used for the secure holding of flaps, container lids, etc. They lock securely over the center and are thus vibration proof. A versatile, low profile design.

The stroke w₁ of the latch hook can pull the parts to be clamped together by up to 5 mm. The range w₂ can be adjusted on the M5 threaded spindle of the latch hook.

The types S and SV prevent unwanted release of the toggle latch.

Screws with low head height such as DIN 6912 are used to fix the toggle latches.

The load specified in the table is simply a guideline value for the nominal static pulling force the latch can withstand. The holding capacity can be adversely affected by the conditions under which the latch is used, such as vibration or shock loads.

The catch bracket is included.

Specification

Toggle latch
SteelST, zinc plated, blue passivated finish

Stainless steelNI

Parts in sheet metal
AISI 304
Clamping hook / pivot pin
AISI 303

RoHS

Build & Price

Part Number A - Without safety catch	Part Number S - With safety catch	Part Number SV - For safety with padlock	Size	F_H Holding capacity	b₁	b₂	b₃	b₄	d	h₁	h₂	h₃	h₄	l₁ min. Identification no. 1 Type A Type SV	Type S	l₂ min. Identification no. 1 Type A Type SV	Type S


101ENH3/A	101ENH3/S	101ENH3/SV	100	225 lbf (1000 N)	1.00	0.87	1.02	0.55	0.17	0.73	0.33	0.85	1.00	2.64	2.91	2.20	2.48
101ENH4/A	101ENH4/S	101ENH4/SV	100	225 lbf (1000 N)	1.00	0.87	1.02	0.55	0.17	0.73	0.33	0.85	1.00	2.64	2.91	2.20	2.48
101ENH2/A	101ENH2/S	101ENH2/SV	100	225 lbf (1000 N)	1.00	0.87	1.02	0.55	0.17	0.73	0.33	0.85	1.00	2.64	2.91	2.20	2.48
101ENH5/A	101ENH5/S	101ENH5/SV	100	225 lbf (1000 N)	1.00	0.87	1.02	0.55	0.17	0.73	0.33	0.85	1.00	2.64	2.91	2.20	2.48

Size	l₃	l₄ min. Identification no. 2 Type A Type SV	Type S	l₅ min. Identification no. 2 Type A Type SV	Type S	m₁	m₂	m₃	m₄	r	w₁ ≈ Stroke	w₂ ≈ Adjustable range Type A Type SV	Type S

100	0.77	1.22	1.50	2.13	2.40	0.56	0.28	0.16	0.31	2.01	0.22	0.47	0.31
100	0.77	1.22	1.50	2.13	2.40	0.56	0.28	0.16	0.31	2.01	0.22	0.47	0.31
100	0.77	1.22	1.50	2.13	2.40	0.56	0.28	0.16	0.31	2.01	0.22	0.47	0.31
100	0.77	1.22	1.50	2.13	2.40	0.56	0.28	0.16	0.31	2.01	0.22	0.47	0.31

Size	F_H Holding capacity	b₁	b₂	b₃	b₄	d	h₁	h₂	h₃	h₄	l₁ min. Identification no. 1 Type A Type SV	Type S	l₂ min. Identification no. 1 Type A Type SV	Type S

100	225 lbf (1000 N)	1.00	0.87	1.02	0.55	0.17	0.73	0.33	0.85	1.00	2.64	2.91	2.20	2.48

Size	l₃	l₄ min. Identification no. 2 Type A Type SV	Type S	l₅ min. Identification no. 2 Type A Type SV	Type S	m₁	m₂	m₃	m₄	r	w₁ ≈ Stroke	w₂ ≈ Adjustable range Type A Type SV	Type S

100	0.77	1.22	1.50	2.13	2.40	0.56	0.28	0.16	0.31	2.01	0.22	0.47	0.31

3D Product Configurator

Size

100

Type

A - Without safety catch

S - With safety catch

SV - For safety with padlock

Material

NI - Stainless steel

ST - Steel

Identification No.

1 - Long type

2 - Short type

Selected Part

Part Number

Total Mexican Pesos (net)

Mex$659.40

In Stock: 6

In Stock

Quantity

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$903.38
50	99	Mex$828.10
100	249	Mex$752.82
≥ 250		Mex$677.53

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.114 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: +52(81)2721-4021

All Prices are in Mexican Pesos. Taxes Not Included.
